BRAIN QUICK® LTM System

Scalable to meet the needs of organizations of any size, BRAIN QUICK LTM solutions can seamlessly collect and manage large patient data sets – even in wireless mode.

Micromed products, including BRAIN QUICK, have joined the Natus family of solutions.

Not available in all countries. Please contact your local sales representative for availability.

Icon - Database

Durable
Modular
Design

Icon - Camera

Automatic
Camera
Switching

Icon - Rate

Continuous
Data
Collection

Adaptable solutions for reliable performance—anywhere

Ideal for both adult and pediatric LTM studies, the BRAIN QUICK LTM is scalable system with features like automatic video-switching let care teams easily monitor patients with less intervention.

  • Full remote control of multiple stations from a single control location and Central Event Manager to distinguish alerts based on event type and acquisition station
  • Optional research tool plug-ins available, with de-identification of data to maintain privacy
Configurations and features to fit your needs

Offering easy expansion from 32 to 256 channels, the versatile SD LTM 32 PLUS and SD LTM 64 PLUS amplifiers can serve as a 3-in-1 system: wired headbox, wireless headbox or ambulatory recorder, ideal for long-term monitoring of adult and pediatric patients.

  • Modular design for easy expansion
  • Easily combine two or four amplifiers for 128 or 256 channel configuration
  • The compact, add-on SD LTM STIM Cortical Stimulator includes an integrated switching matrix and single-wire connection to the amplifier

Service and support

Looking for neuro product service or technical support?

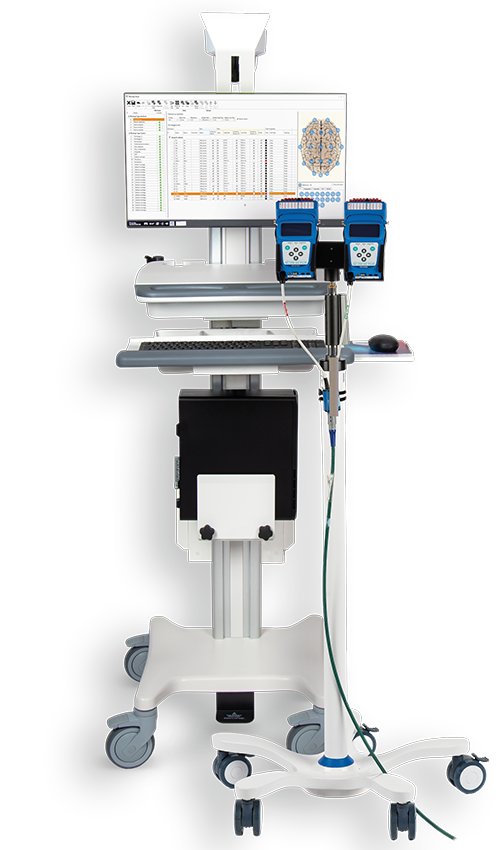

BRAIN QUICK® LTM EEG System
BRAIN QUICK® Video LTM EEG Monitoring System

Long-term monitoring made simple

BRAIN QUICK LTM solutions deliver flexible, high-performance monitoring designed for mobility and adaptable to your unique needs:

  • Automatic video switching by location lets your care team monitor patients with less intervention.
  • Modular, expandable 32-and 64-channel systems allow for multiple configurations
  • Patient data is consolidated in one convenient place, allowing you to import smartphone video and images
  • Full remote control of multiple stations from a single location
BRAIN QUICK EEG software

Seamless EEG Software

Building on the success of previous iterations, the newest release of BRAIN QUICK Software 3 provides an easily scalable, single-software solution with the most advanced tools for EEG analysis and research.

  • New, modernized interface with customizable toolbar and enhanced usability
  • Included File Manager function for streamlined database and patient management that is backwards compatible with legacy Micromed systems
  • More advanced LTM, ICU and research tools, including offline HFO detection and external calculation tools
  • Powerful event detection and trending tools, including spectral analysis, coherence analysis, aEEG, HFO detection, BSR, and online alerts

Product Information

Hardware

SD LTM 32 PLUS

  • 32 Common Ref. EEG channels
  • DC mode
  • 16 or 24 bit ADC
  • 8 User Selectable Bipolar/Common Reference EEG Channels
  • 2 Inductive Belt Respiration Channels
  • 2 extra DC Channels
  • 3 Oxymeter Channel (SpO2, Pleth., Beat)
  • 1 Embedded Body Position
Brain Quick SD LTM

SD LTM 64 PLUS

  • 64 Common Ref. EEG Channels
  • 8 User Selectable Bipolar/Common Reference EEG channels
  • DC mode
  • 16 or 24 bit ADC
  • 2 Inductive Belt Respiration Channels
  • 2 extra DC Channels
  • 3 Oxymeter Channel (SpO2, Pleth., Beat)
  • 1 Embedded Body Position
Brain Quick LTM PLUS Amplifier

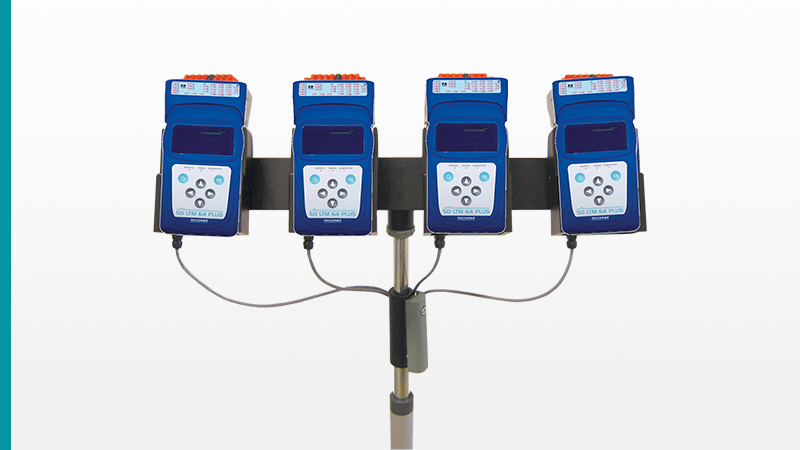

SD LTM 128/256 PLUS

  • Easily combine two or four Amplifiers for 128 or 256 channel configuration
  • One-wire transmission with quick disconnect
  • Full data synchronization
Brain Quick LTM PLUS Amplifier Group

SD LTM STIM

  • 0.1 to 15 mA by step of 0.1 mA
  • Measure of Really Delivered Current
  • Monophasic or Biphasic Stimuli
  • 0,06 to 300 Hz Pulse Rate
  • 25 to 1000 µs Pulse Duration by step of 25 µs
  • 3x AAA Battery Powered
SD LTM Stimulator

Software

BRAIN QUICK Software’s comprehensive and customizable solutions simplify EEG review and reporting, from routine applications to the ICU and beyond.

Intuitive BRAIN QUICK software

  • Role-based security measures for enhanced HIPAA/GDPR compliance
  • Configurable automatic data archiving
  • Bi-directional HL7 integration with HIS/EMR
  • SQL Server database · Powerful event detection and trending tools
  • Synchronized full HD video (1920 x 1080)
  • MRI, CT image upload for custom grid and depth electrode placement

Product Literature Download

BRAIN QUICK LTM Brochure
English
French
German
Italian
Spanish

What’s New in BRAIN QUICK Software 3
English
French
German
Italian
Spanish
Dutch

Supplies

Natus provides a complete line of supplies to meet all EEG recording needs.

  • Genuine Grass® Reusable EEG Cup Electrodes
  • Grass Reusable EEG Stamped Cup Electrodes
  • Grass Disposable EEG Cup & Deep-Cup Electrodes
  • waveguard original Head Caps
  • waveguard connect Head Caps
  • Electrode Application Products
  • Convenient online portal – Natus Medical Store (available in select markets)
