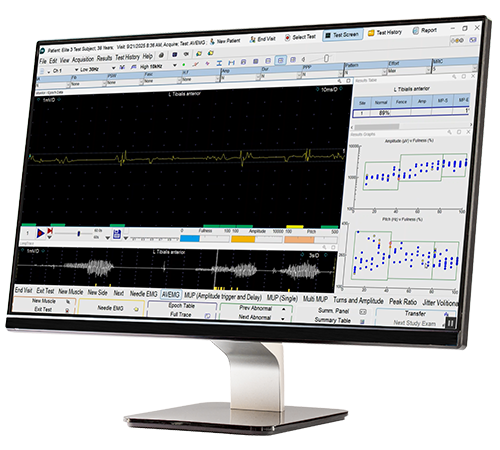

Natus Elite® EMG Software

It’s easier to focus on delivering the best patient care when software is familiar, reliable— and offers more advanced testing capabilities. Backed by over 60 years of clinical knowledge, Natus Elite is the advanced EMG software users can trust to help assess patients and perform important research with greater certainty

Natus Elite EMG Software is available on Nicolet EDX and Ultrapro systems.

Natus Elite powered by Keypoint is available on Natus Keypoint G4 and Focus systems.

Not available in all countries. Contact your Natus representative for availability.

Highest-quality
HD EMG

Expanded
Testing
Features

Convenient
Clinical
Tools

Contact your Natus Rep

Explore more details

What’s improved in Natus Elite 2?

The latest update to Natus Elite, our leading EMG software, brings together decades of innovative advancements to enhance your existing workflow and deliver deeper insights through innovative tools–like AVEMG, InSight NCS, and integrated NMUS to confidently support the full patient journey.

ACQUISITION & ANALYSIS

Seamless NMUS integration to complement EMG studies with top-quality imaging and perform EMG and NMUS side-by-side on a single screen
Adds AVEMG for automated quantification in routine needle EMG
Live automated SFEMG acquisition and clinically advanced data edition
Adds advanced, automated tremor analysis for movement disorder diagnostics

REVIEW & REPORTING

Multi-modality comparisons: side to side, previous study, different nerves, different tests (Motor, sensory, F wave
Real-time LiveView screen & audio share improves collaboration
Enables direct software-based access to recording data for third-party research and manipulation

Service and support

Looking for neuro product service or technical support?

Natus service and Support

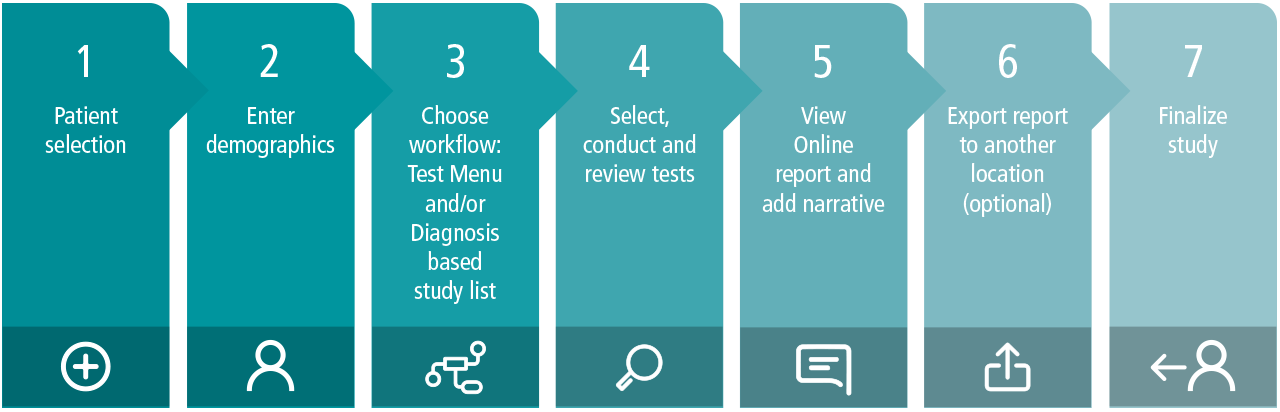

Patient to report in 7 steps

Bringing together decades of innovative advancements, Natus Elite enhances your existing workflow, delivering deeper insights through innovative tools–like AVEMG, InSight NCS, and integrated NMUS. Support the patient journey with ease through comprehensive visualization of the patient condition to deliver confident care.

Simple, customizable workflows

Customizable features and personalized software workflows
Patient-to-report workflows for simple, efficient administration
Intuitive neuromuscular ultrasound (NMUS) studies with convenient control access and efficient report creation
Visibility of patient visit and test status to facilitate workflow
Frequent operations like rollback, roll forward, edit average and more, require only minimal clicks
Includes customizable AANEM reference values for both adult and pediatric patients, automatically selected based on patient age, height, gender, and body mass index

Capabilities that deliver unmatched clarity for faster, more confident diagnostics

Natus Elite delivers unique features that help users simply and efficiently expand their clinical capabilities

HD-EMG

Ultra high-definition resolution at 4,800 points per trace

InSight NCS

Easy access to side-by-side, multi-modality and past visit comparisons.

Fsp

Optimized EP data confidence with unique signal quality estimator.

Integrated NMUS

Real-time visual anatomical insight and easy, enhanced reporting with NMUS images.

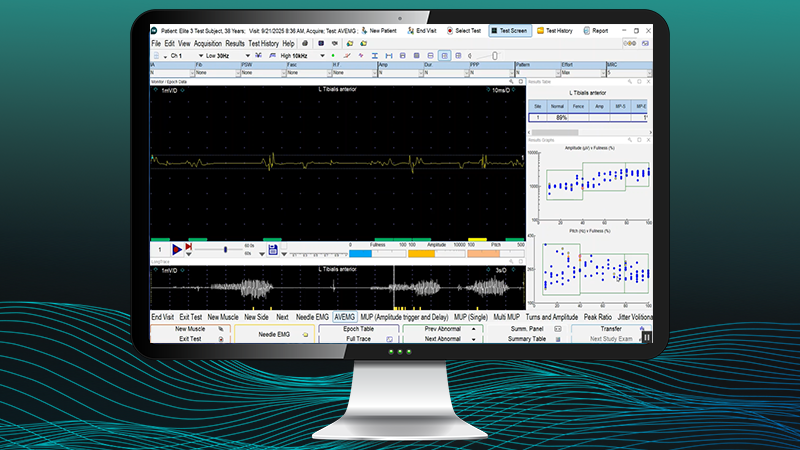

Introducing AVEMG

Exclusive algorithm for confident interpretation with AVEMG

Audio-Visual electromyography (AVEMG) is a new method of automated analysis of the volitional EMG activity with graded force of contraction. AVEMG provides live quantification of audio and visual characteristics of EMG, providing guidance and real-time assessment of signals while maintaining your existing workflows and recording technique.

Access AVEMG publications

Deeper insights on patients' conditions with InSight NCS

InSight NCS, exclusive to Natus Elite software, provides first-of-its-kind, side-by-side study comparison capabilities, improving diagnostic precision and elevating the standard of care.

Seamlessly compare past and current exams for a single patient
Multi-modality comparisons: previous study, different nerves, different tests (Motor, Sensory, F wave, NMUS)
Compare NCS with NMUS findings side by side

Invisus Pro neuromuscular ultrasound integrated with Natus Elite software provides first-of-its-kind side by side comparisons of NMUS and NCS studies

Expand clinical confidence with integrated neuromuscular ultrasound

Natus Elite software seamlessly integrates with InVisus Pro Neuromuscular Ultrasound to enhance EMG capabilities
One-click reporting for easy management of the full patient journey
Integrated controls and NMUS image display
Consolidated analysis and reporting of EMG/NCS, and NMUS, including ability to easily include NMUS images in report
Efficient post-acquisition data analysis and trending

“

Natus Elite software is intuitive, easy to use and incredibly customizable – you decide how you like to work.

Physician from Neuromuscular Center and EMG Laboratory University Hospitals Cleveland Medical Center

Product Information

Software

Nerve Conduction Studies (NCS)

Motor NCS, Sensory NCS: Single and multi-channel
Terminal Latency Index (TLI), Residual Latency (RL)
Combined Sensory Index (CSI)
Combined Motor and Sensory NCS
Short segments (Inching)
F Wave, H Reflex, Blink Reflex
Decrement (RNS), High Frequency RNS
Long and Short Exercise tests
Motor Evoked Potentials (MEP)†
Sympathetic Skin Response (SSR)
RR Analysis: normal breathing, deep breathing, stand-up, Valsalva
Reference values based on age, gender, body mass index and height, with AANEM recommended values supported by default

Advanced NCS

Collision testing
Conduction Velocity Distribution (CVD)
Triple Stimulation Test (TST)†

Needle EMG

Standard needle EMG:
Spontaneous, Volitional, Motor Unit Potential (MUP), Maximum Volitional, EMG findings (Interpretation), Multi-channel EMG

Quantitative EMG

Turns-Amplitude analysis (TA)
Expert’s Quantitative Interference Pattern (EQUIP)
Multi-MUP Analysis (MMA)
Clustering index and Form factor analysis for surface EMG
Audio-Visual EMG assessment (AVEMG)
Peak ratio

Single Fiber EMG (SFEMG)/Macro EMG

Voluntary SFEMG
Stimulated SFEMG
Fiber Density
Macro EMG

Evoked Potentials (EPs)

Auditory EP (AEP)
Visual EP (VEP) – Pattern and LED Goggles
Visual EP (VEP) – Photic Flash*
Somatosensory EP (SEP)
OHL Assessment
P300 / CNV
Ganzfeld Support (EOG / ERG)*
Mismatch Negativity (MMN)

Other Software Modules and Features

MUNIX
Automatic Stimulation
Tremor Analysis*†
CMAP Scan*
Reference Help
IntraOperative Monitoring (IOM)*
Raw Data Streaming
Reference Help with 1 Year subscription web based training

Neuromuscular Ultrasound (integrated or stand-alone)

5 transducer options (2 – 18 MHz)
Combined Needle EMG-NMUS

Patient Management

Networking
Central databases
Remote LiveView

*Only on Nicolet EDX
† Not available in USA
§ Not available on UltraPro in USA

Hardware

Natus Elite EMG Software is available on Nicolet EDX and UltraPro S100

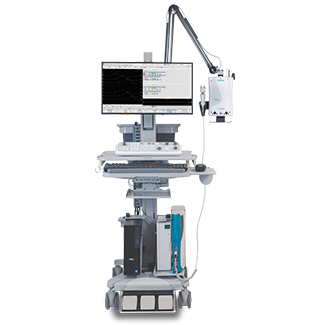

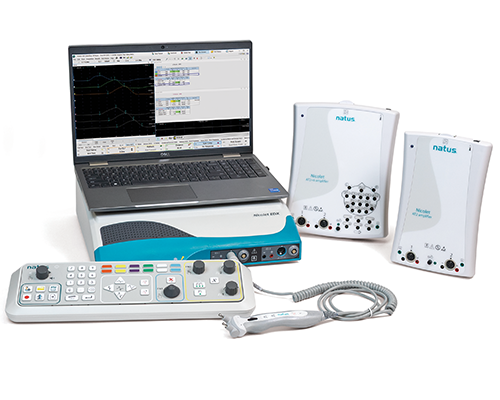

Nicolet EDX

A clinical leader in exam options

The Nicolet® EDX combines flexibility with advanced clinical features as the gold standard of EMG, NCS, and EP neurodiagnostic care. Work more efficiently by reducing testing and data acquisition time while performing routine or advanced clinical diagnostics.

Natus UltraPro S100

Ultra-Simple. Ultra-Certain.

Natus UltraPro S100 is ideal for private practice physicians, offering portability and reliability for EMG, NCS and EP neurodiagnostic examinations and procedures.

Natus Elite powered by Keypoint is available on Natus Keypoint G4 and Keypoint Focus systems.

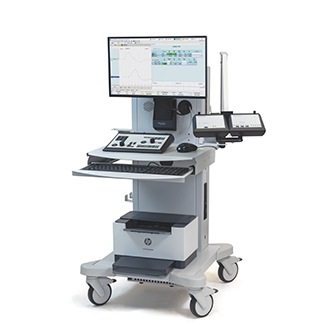

Natus Keypoint G4

Robust, reliable and advanced EMG

Designed for premium performance, Keypoint G4 is a comprehensive EMG/NCS/EP with renowned signal quality. Accommodating a wide range of amplifiers and other hardware options, Keypoint G4 offers intuitive operation and precise data acquisition, enabling your care team to confidently perform patient assessment and research.

Natus Keypoint Focus

Scalable and flexible EMG solution

Focus is a highly flexible and easily scalable EMG solution renowned for its superior signal quality. Accommodating a wide range of amplifiers and other hardware options, Keypoint Focus offers intuitive operation and precise data acquisition, giving your team greater confidence in the care you deliver.

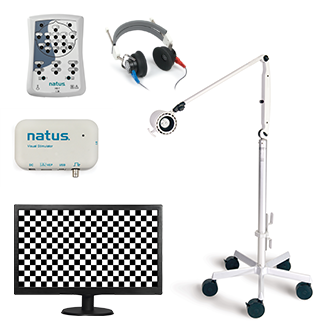

Evoked Potentials

In Evoked Potential testing, accuracy and efficiency are paramount. Our cutting-edge technology sets the standard for quality. With workflow optimized for fast testing, ensuring that you get precise results quickly, the EP options cater to a wide range of test types that you need, all within our user-friendly software.

Rapid results

Perform direct result comparisons between the left and right sides on one screen, accelerating result interpretation
Benefit from auto-marking, with markers automatically placed on the sweeps
Fast and adaptable artifact rejection management

Unrivaled precision

Elevate signal quality control with FSP & RNE, ensuring cleaner responses with fewer averages
Achieve superior data quality with up to 48 kHz sample rate
ECG-triggered SSEPs, a unique feature that removes ECG artifacts from the recording to get a cleaner response in less time
Tailor your view of recorded sweeps to your liking, with options like odd and even mode, as well as sum and difference mode, accommodating diverse user preferences

Complementary Neuromuscular Ultrasound

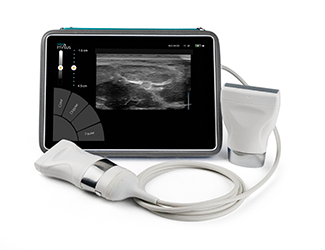

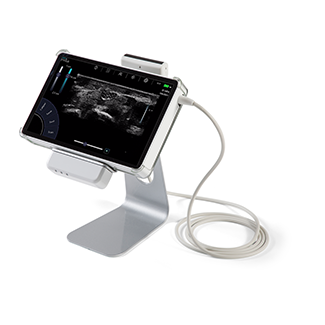

InVisus Pro Neuromuscular Ultrasound (NMUS)

The most advanced neuromuscular ultrasound (NMUS) solution from Natus, InVisus Pro delivers unparalleled flexibility. With seamless integration with Natus Elite 2 software or as a stand-alone solution, it streamlines provider workflows for greater efficiency. Integrating InVisus Pro with your EMG system allows NMUS to complement electrodiagnostic studies, giving your team deeper insights into patients’ conditions, enabling more accurate diagnoses, and supporting better patient management.

IT Features

Fast, secure connection to patient EMRs and HL7 integration with hospital information systems, networking and remote view.
Networking and SQL database improvements for scalability, security, administrator and user profiles
Enables facilities to use unique network username and password credentials
Reduced security risk; immediately disabling access to Natus Elite software when credentials change
